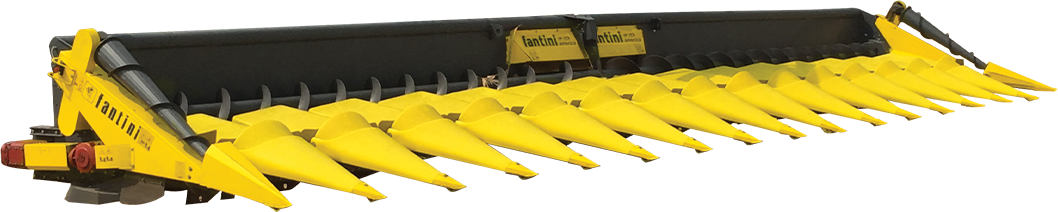

L03 Rigid Corn Harvesting Header

Efficient, reliable and robust, the L03 rigid corn harvesting header from Fantini can easily fit any variety of combine or corn shredder.

Featuring a stalk chopper mounted in the rear central position and directly connected to the harvesting drive gearbox to form a solid and durable unit, the innovative design of the L03 helps optimize crop flow and maximize yield potential.

L03
row-units

Row Units with Clutch in Sealed Gearbox

A cast iron gearbox features high tech hardened steel gears that are protected by a torque-limiting device in an oil bath for exceptional durability and safety.

side-transmissions

Side Transmissions

Right angle gearboxes and PTO shaft couplings reduce maintenance needs for the transmissions and make them more reliable than chain drives.

removable-stalk-choppers

Removable Stalk Choppers

Equipped with wide diameter steel discs with tungsten carbide edged knives for efficient cutting, each chopper is mounted in a central rear position and connected directly to harvesting drive gearbox. Choppers can removed using a pliers or screwdrivers.

chain-tension-adjustment

Chain Tension Adjustment

Gathering chain tension is controlled by a strong, simple bolt system that ensures optimal reliability in all working conditions.

harvesting-rollers

Harvesting Rollers

Rollers are supported at the front and are equipped with stalk roller spirals to ensure smooth, consistent stalk gathering. A scraper knife prevents grass from wrapping around the roller.

adjustable-settings

Adaptable Settings

Featuring adjustment inclination, the header has versatile settings that make it adaptable to all combines. The header angle can be adjusted easily based on working conditions.

plastic-row-unit-covers

Plastic Row Unit Covers

Available on models with 70, 75 and 80 cm row spacing, maintenance-free plastic row unit covers help minimize crop losses when cobs fall on top of them.

adjustable-knives

Adjustable Knives

Four reversible, adjustable knives are constructed of steel with tungsten carbide edges. Securely bolted for easy maintenance, the knives enhance the harvest experience.

adjustable-lever

Adjustment Lever

Operated directly from the cab, the unit’s lever system offers optimal adjustment of stripper plate distance.

side-augers

Conical Side Augers

Simple, light and durable, conical side augers provide exceptional performance on downed corn.

  • Side Augers – Left and/or Right
  • Double Transmission
  • Hydraulic Couplings
  • Iron Row Unit Covers
  • Iron Row Unit Covers
  • Sunflower Harvesting Kit
Type Number of Rows* Inter-row Distance**
Rigid L03 From 2 to 16 27.6 in.; 29.5 in. and 31.5 in.
Rigid L03 From 6 to 16  17.72 in.

* – Different number of rows available upon request, ** – Different row spacing available upon request



Number of Rows Row Spacing Width During Transport Header Basic Weight Weight with Stalk Chopper
4 27.6 in.; 29.5 in. and 31.5 in. 124 in. 2646 lbs.  3197 lbs
5 27.6 in.; 29.5 in. and 31.5 in. 154 in. 3527 lbs. 4079 lbs.
6 27.6 in.; 29.5 in. and 31.5 in. 183 in. 4079 lbs. 4519 lbs.
8 27.6 in.; 29.5 in. and 31.5 in. 242 in. 5401 lbs. 5952 lbs.
9 27.6 in.; 29.5 in. and 31.5 in. 271 in. 6062 lbs. 6834 lbs.
10 217.72 in.  303 in.  6613 lbs. 7496 lbs.
12 217.72 in. 362 in. 7716 lbs. 8818 lbs.
12 217.72 in. 230 in. 5952 lbs.
